Regional Morphology
This is relevant for Vipers in Central and Southern Africa.
Morphological identification key
| Viperinae | ||||||
|

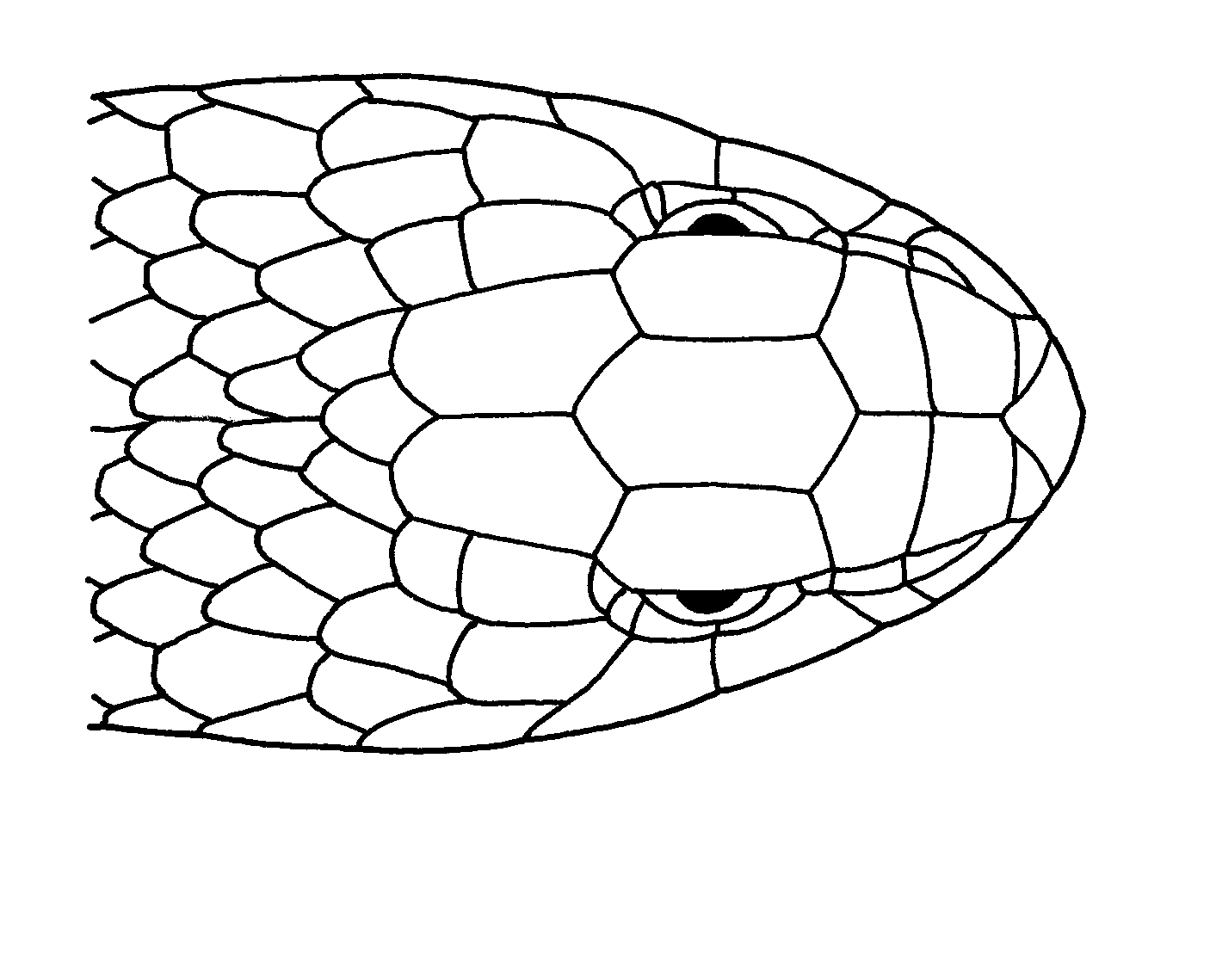

Are there several enlarged shields (generally 9) on the top of the head? |
yes |

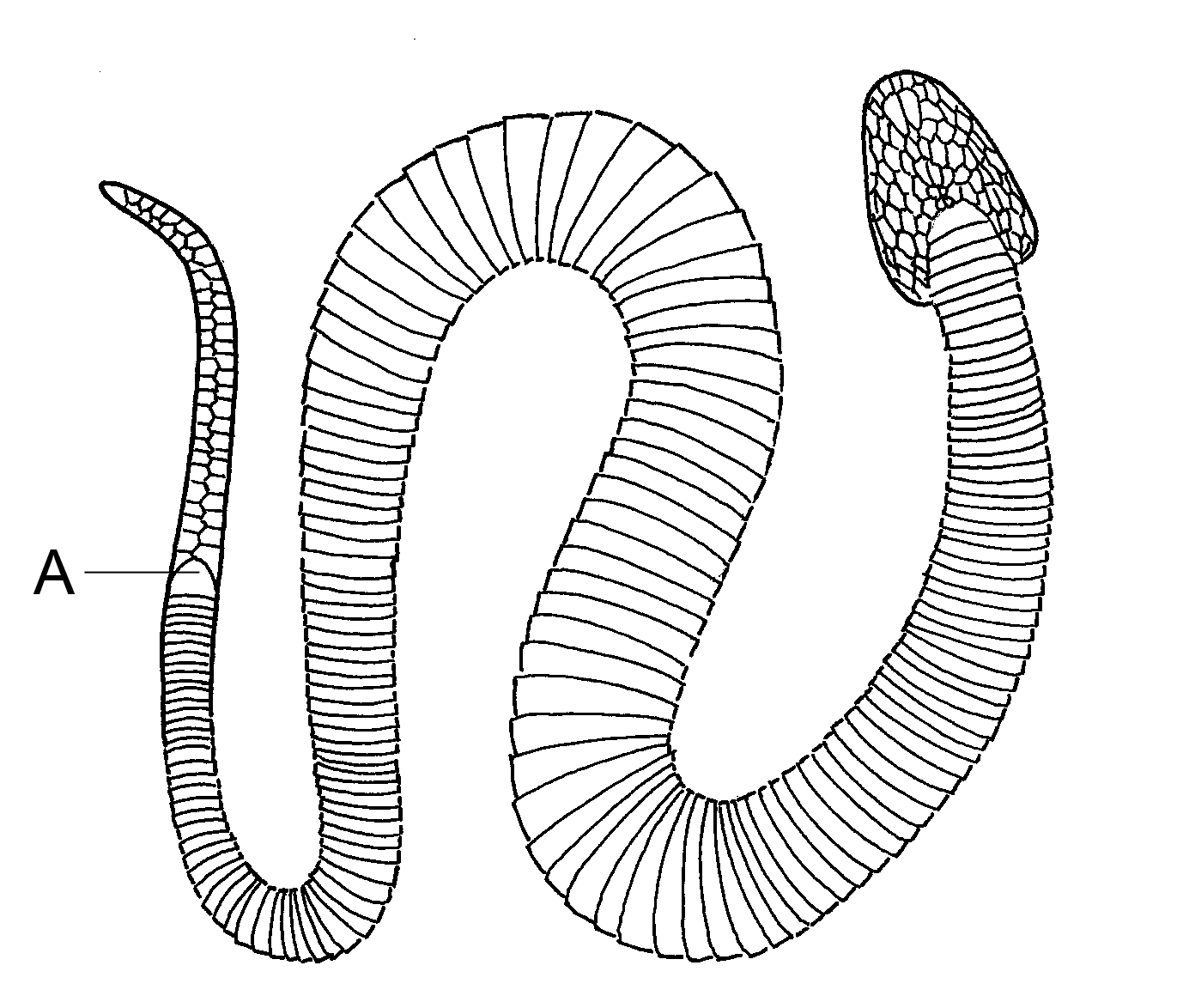

How many ventral scales (on the belly, from the neck to the anal plate A, which covers the cloaca) are present? |
more than 170
|
Atractaspis sp. | ||
| fewer than 160
|
Causus sp. | |||||
| no | ||||||
|

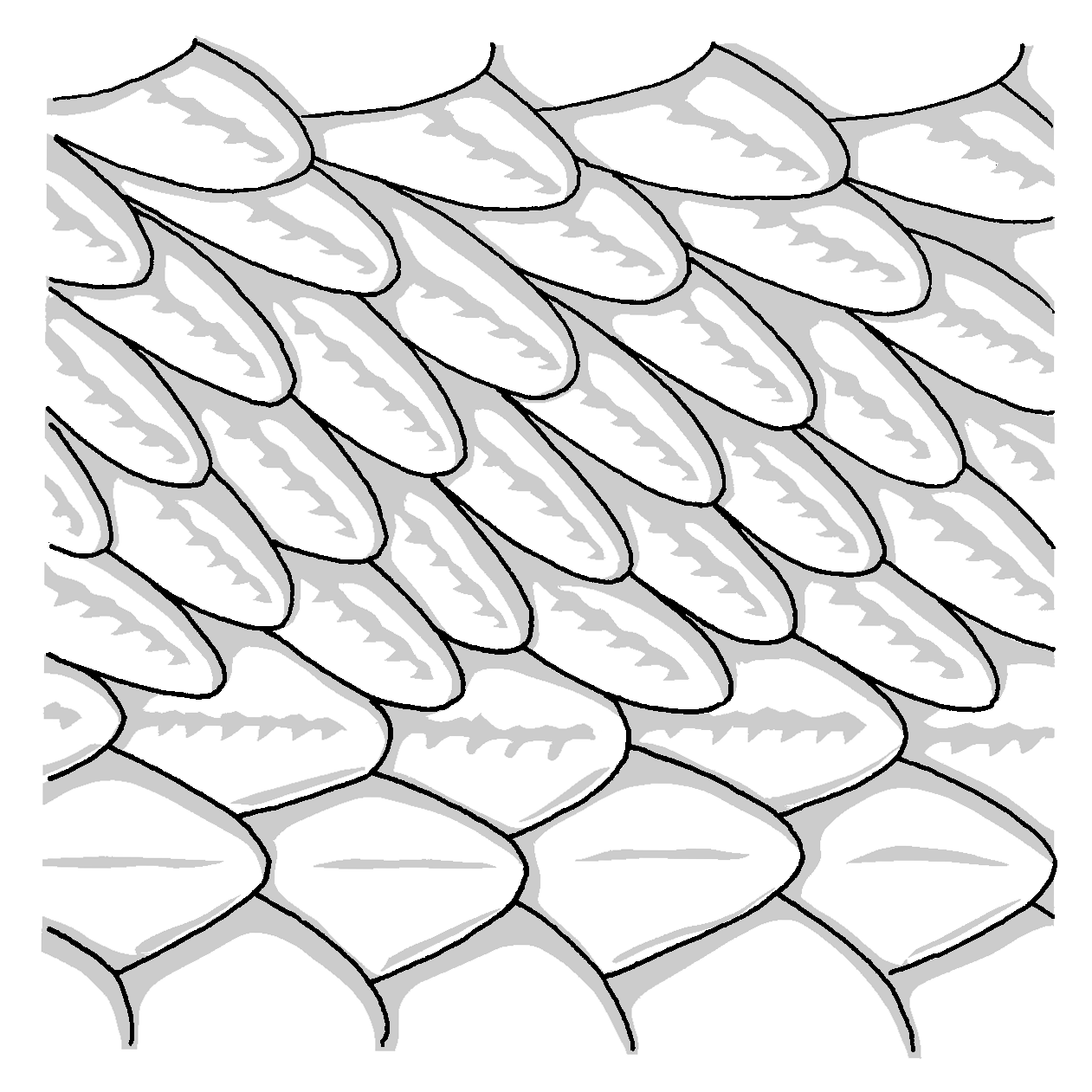

Do the lateral scales have saw-like serrated keels? |
yes | Echis sp. | ||||
| no
|
||||||
|
Are all the subcaudal scales (underneath the tail, from behind the anal plate A, which covers the cloaca) undivided? |
yes |

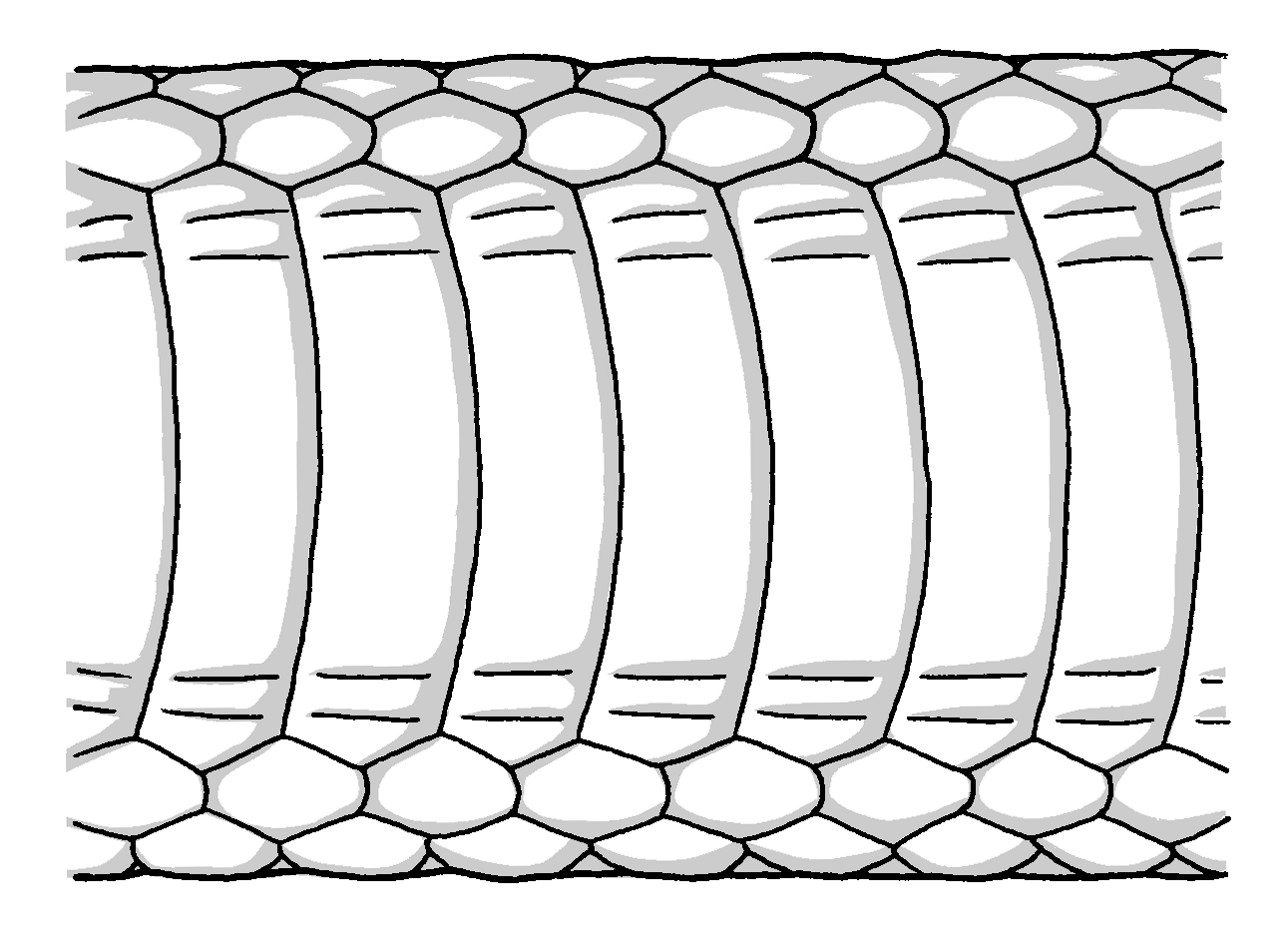

Do the ventral scales (on the belly) have lateral keels? |
yes
|
Bitis worthingtoni (occur only in Kenya) or Cerastes cerastes (occur only in northern Sudan) |
||
| no | Atheris sp. (excluding A. hindi and A. superciliaris!) | |||||
| no
|
||||||
|

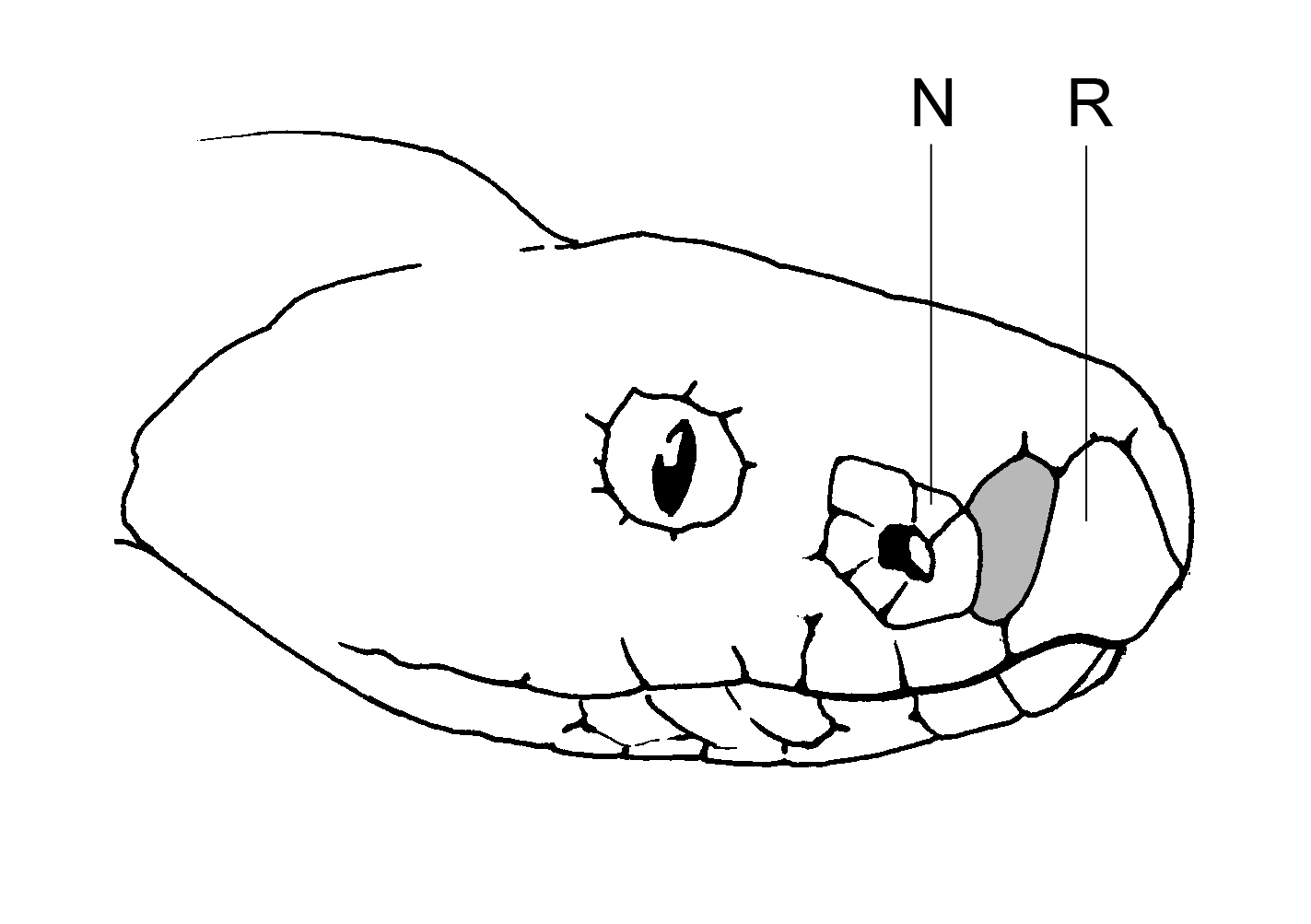

What is the appearance of the region between the nasal scale N (scale on which the nostril is located) and the rostral scale R (forwardmost scale on the tip of the snout)? |
||||||
|
a) Nasal scale in contact with the rostral scale or separated by a single scale. |
a
|
Atheris hindii (=Montatheris hindii) or A. superciliaris (=Proatheris superciliaris) |
||||
|

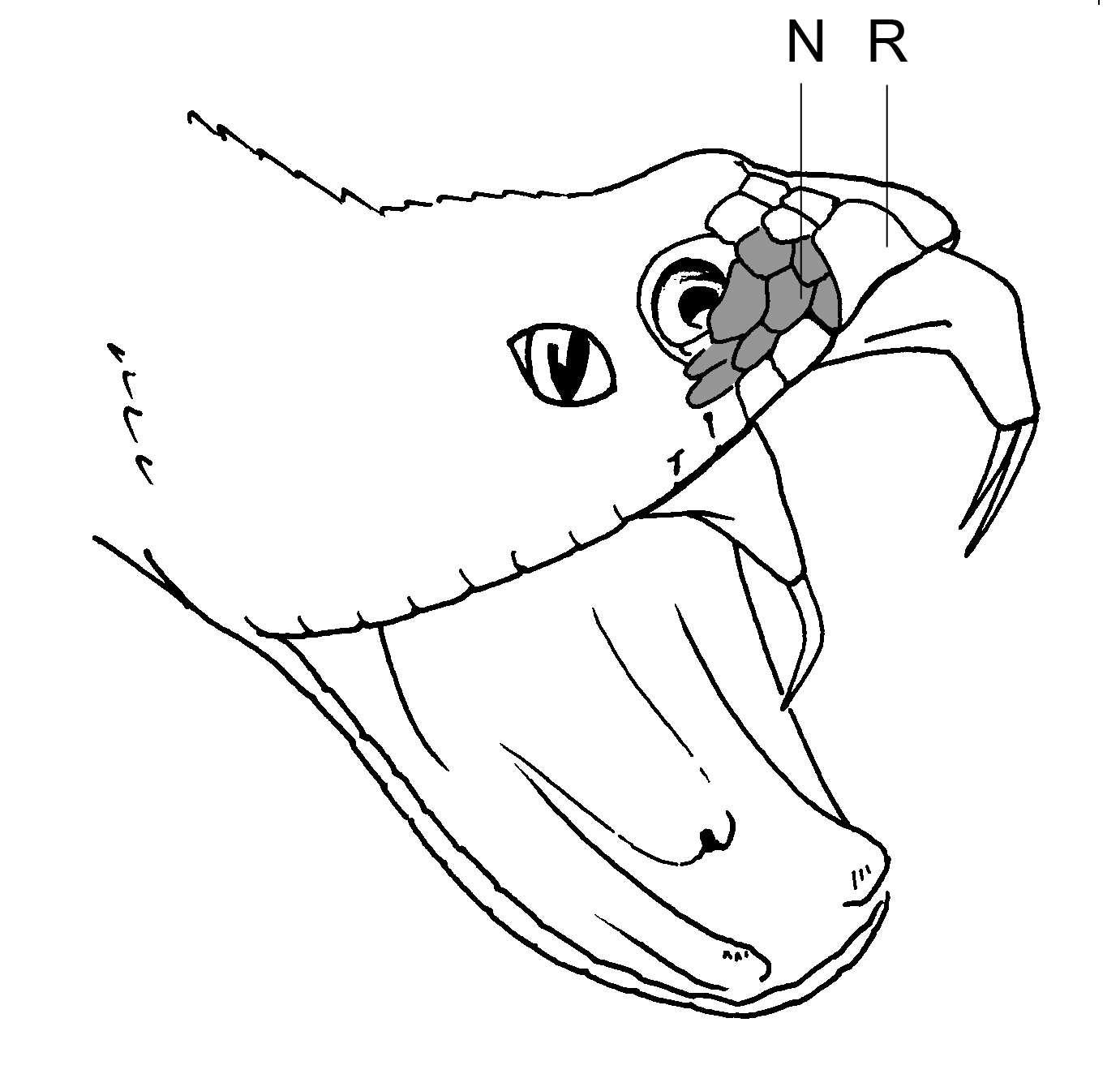

b) 1 or more rows of scales separate the nasal and rostral scales. |
||||||
| b | Bitis sp. (excluding B. worthingtoni!)
|
|||||
